Safety wiring procedure for spinners

Spinners must be tightened with a lead hammer and safety wired.
Please follow this sequence of photos to help you with the safety wiring procedure.
Ensure that the safety wire is "pulling" in the same direction as the spinner is tightened .
The right hand (standard clockwise) spinner must be on the left side (looking forward from the rear of the vehicle) and visa versa.
In other words tighten the spinner in the opposite direction of wheel rotation when the vehicle is being driven forwards.
Please call 1888 720 0459 in your require more information on this procedure.

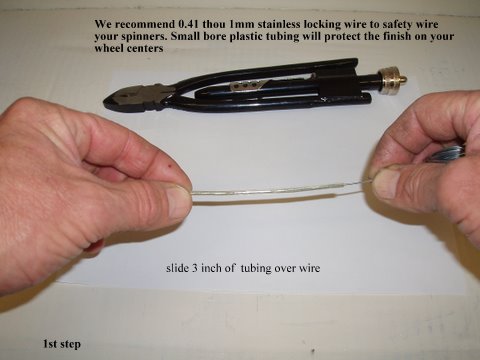

1

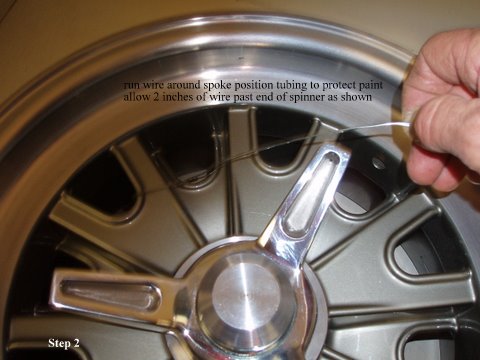

2

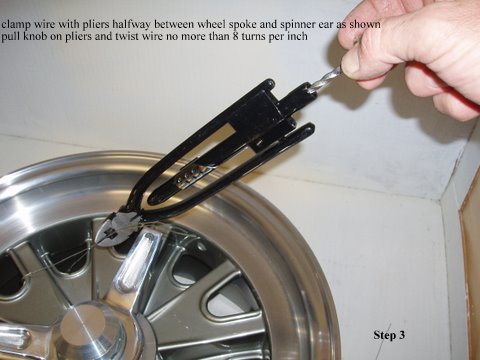

3

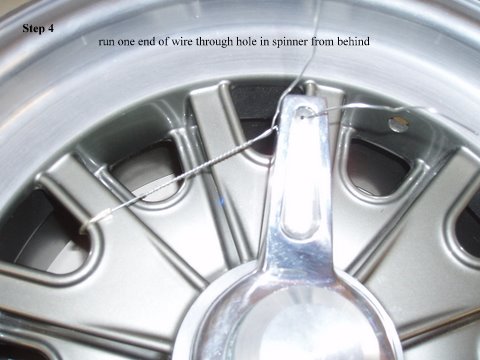

4

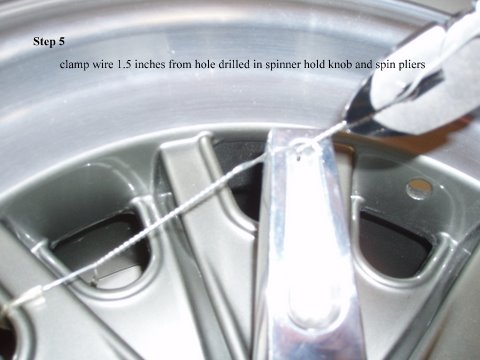

5

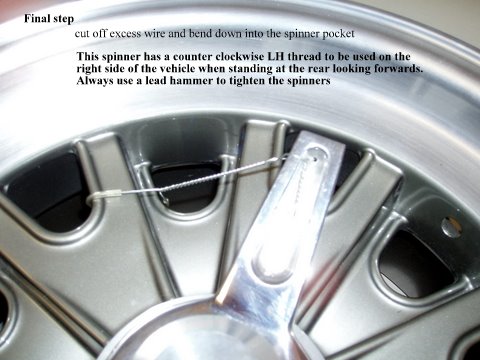

final
